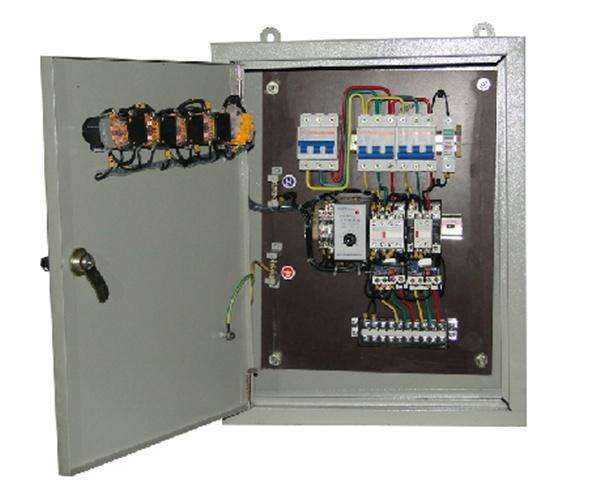

We cannot do without electricity. Electricity is an important equipment product in our daily home life. We use electricity almost every day, and now we have formed a habit of electricity. The Jiangmen distribution box provides low voltage for the circuit system and performs circuit protection conversion at the end of the system. This is the lighting distribution box. Today, we will introduce the wiring diagram of the lighting distribution box and comprehensively explain the knowledge of the wiring diagram of the lighting distribution box. We hope it can help us understand how to wire the lighting distribution box.

1. If installing a household lighting distribution box, it is necessary to purchase an incoming line, which should be about four square meters. It should be connected to the main switch of the household through the front of the leakage switch, and then to the switches of various rooms through the front. As the neutral line is shared, it should be separated and distributed to each room.

2. When wiring a household lighting distribution box, it is important to carefully consider the layout of the wiring diagram. Do not confuse the neutral line with the front line. If the two are connected incorrectly, there will be no power supply, creating a misunderstanding. In fact, whether they are connected in the right or wrong direction, the presence of a leakage switch will cause the neutral line and the front line to move. As many neutral lines are connected inside the leakage switch, only the front line will be disconnected after opening the switch. Therefore, it is important to pay attention to the issue of incorrect connection between the front line and the neutral line. To distinguish between the two, do not make mistakes. You can take a look at the leakage switch.

3. Before installing a household lighting distribution box, it is necessary to purchase all the equipment involved, measure the rated current and operating voltage of the household circuit, equip a nearby lighting distribution box according to the power supply of the household circuit, and then plan a wiring diagram for the household lighting distribution box. After completing the entire process, the installation is also very convenient.

Based on the above, the wiring of general household lighting distribution boxes requires specialized technicians to operate. As they not only have protective measures and equipment, but also need to be installed, when installing the wiring of household distribution boxes, do not forget to turn off the main power switch at home. Safety is still very important.
